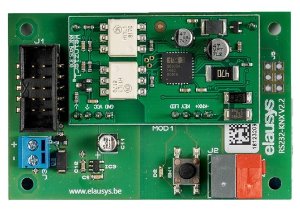

EVO-KNX Paradox KNX interface V2.00

ELAUSYS EVO-KNX is a KNX gateway for the Paradox EVO alarm systems. It enables bidirectional communication with the alarm system using the printer module (PRT3) from Paradox.

- KNX Interface for Paradox EVO alarm systems
- Up to 30 PGM status
- Up to 96 zones status
- Control up to 16 virtual inputs
- Control up to 4 areas (arm/partial/disarm)
- 9 status per area (alarm, entry, exit, fire,?)
- Recall of KNX scenes for each status
- Galvanic insulation from the KNX bus

DESCRIPTION
The KNX interface module EVO-KNX is a KNX gateway for the Paradox EVO alarm systems. It enables bidirectional communication with the alarm system using the printer module (PRT3) from Paradox.

It allows integrators to take advantage of a fully integrated alarm system including KNX scenarios, automatic lighting using the motion detectors, arming or monitoring the system using a KNX visualization.

This interface is intended to be used with a PARADOX EVO series alarm system. The system must be equipped with a PRT3 module for RS232 communication.
